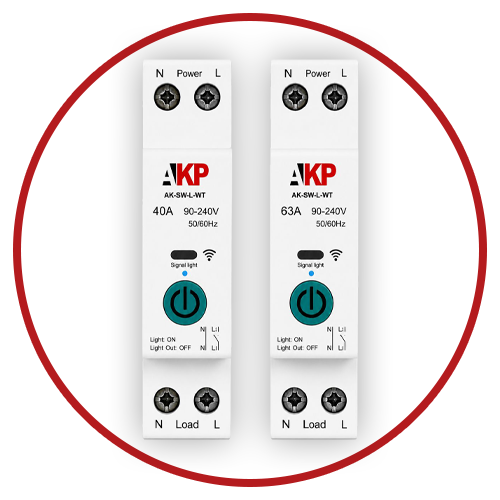

Smart Miniature Circuit Breaker (Smart MCB)
AKP Smart MCB Series
The AKP Smart Miniature Circuit Breaker (Smart MCB) is an intelligent protection and energy management device designed for modern electrical distribution systems, smart grids and intelligent buildings.
In addition to providing conventional miniature circuit breaker protection, Smart MCB offers real-time energy monitoring, remote control and advanced load management through Wi-Fi communication and smart applications.
The device measures electrical parameters, records operational events and enables users to monitor and control electrical circuits remotely, making it an ideal solution for residential, commercial and industrial energy management applications.
Real-Time Measurement Functions
The AKP Smart MCB continuously measures and records:
* Voltage
* Current
* Active Power
* Energy Consumption
* Frequency
* Power Status
Measured data can be transmitted through Wi-Fi to energy management software, cloud platforms and mobile applications.
Main Features of AKP Smart MCB
* Smart Miniature Circuit Breaker (Smart MCB)
* Designed for Smart Grid applications
* Ideal for intelligent electricity, water and gas management systems
* Remote monitoring and control
* Wi-Fi communication
* Tuya Smart Platform compatible
* Compatible with third-party and custom mobile applications
* Firmware upgrade support
* Suitable for Energy Management Systems (EMS)
* Designed in accordance with IEC standards
* Supports IEEE standards
* Real-time measurement of voltage, current and power
* Energy consumption monitoring
* Internal memory for event recording
* Alarm and Event Log recording
* LED status indicators
* Real-time breaker status monitoring
* Remote ON/OFF switching
* Load limitation settings
* Programmable operating schedules
* Daily and seasonal scheduling
* Automatic reclosing function
* Adjustable reclosing time
* Load management and power control
* DIN Rail mounting
Rated Current Range:
* 25 A
* 32 A
* 40 A
* 50 A
* 63 A
Technical Specifications
* Breaking Capacity: 10 kA
* Mechanical Life: 10,000 Operations
* Wi-Fi Communication
* Remote ON/OFF Control
* Real-Time Monitoring
* Event Recording
* Internal Memory Storage
Smart Functions
* Automatic Reclosing Function
* Programmable Reclosing Schedule
* Seasonal Programming
* Load Limitation
* Smart Energy Management
* Remote Monitoring & Control
* Mobile Application Support
* Smart Alarm System
Applications
* Smart Grid Projects
* Smart Power Distribution Networks
* Smart Water & Gas Management Systems
* Smart Metering Systems
* Smart Buildings
* Industrial Facilities
* Energy Management Systems (EMS)
* Smart Utility Projects
* Commercial Buildings
* Energy Monitoring Systems
Protection Functions
* Over Current Protection
* Short Circuit Protection
* Remote Trip Function
* Load Monitoring
* Smart Protection Functions
* Automatic Reclosing
| NO | Parameter | Specification |

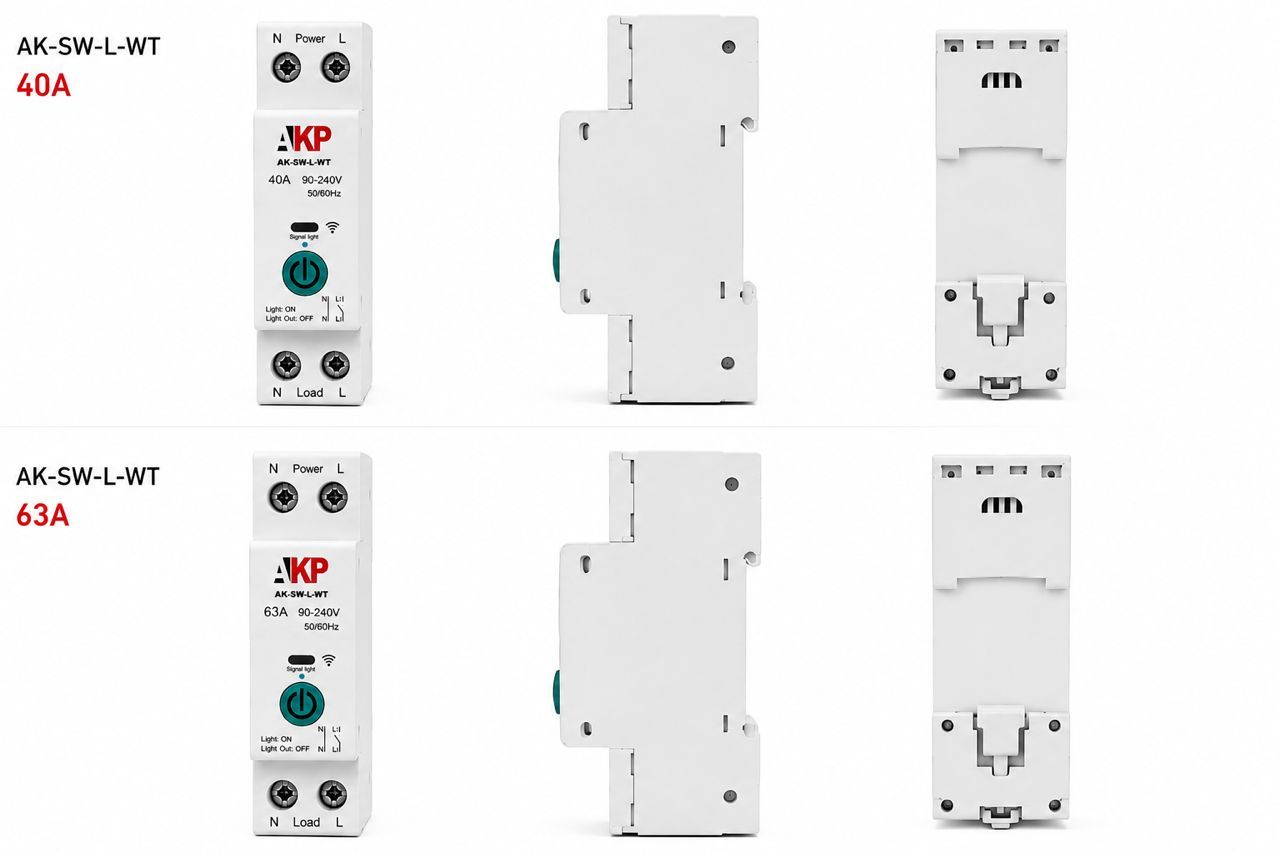

| 1 | Product Series | AK-SM-WT / AK-SM-L-WT |
| 2 | Device Type | DIN Rail Smart MCB |
| 3 | Pole Configuration | Disconnectable L Pole, Direct N Pole |
| 4 | Rated Voltage | AC 90 – 240V |
| 5 | Frequency | 50/60Hz |
| 6 | Rated Current Range | 1-63A |
| 7 | Current Frame | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| 8 | Mounting Type | 35mm DIN Rail |
| 9 | Monitoring Functions | Real-time Voltage, Current, Power, Energy Consumption, Device Status |
| 10 | Protection Functions | Over Voltage, Under Voltage, Over Current, Over Power, Temperatur |
| 11 | Control Features | Remote ON/OFF, Auto Reclosing, Voice Control, Multiple Timing |
| 12 | Energy Metering Accuracy | Class 2.0 - Metering Class 1.0 |
| 13 | Operational Safety | Maintenance mode with remote lock protection |
| 14 | LED Indicators | Network Pairing, Switch Status, Network Connection |
| 15 | Connection Capacity | Rigid Cable: 1–16mm² / Flexible Cable: 1–10mm² |
| 16 | Terminal Tightening Torque | 1.8 N.m |
| 17 | Dimensions | 82 × 18 × 50 mm |
| 18 | Applicable Standards | IEC/EN 60947, IEC/EN 62055-31, EN 301 489, EN 300 328,IEEE |
| 19 | Applications | Smart Home, Industrial Automation, Energy Monitoring, Remote Power |
