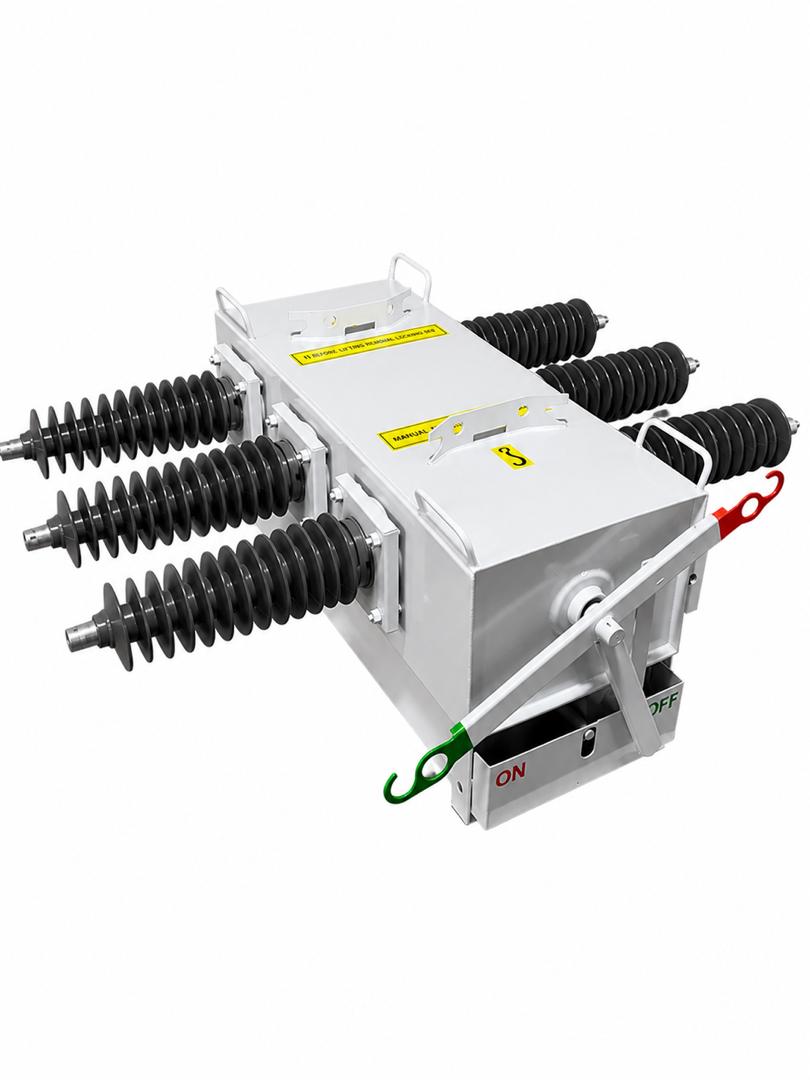

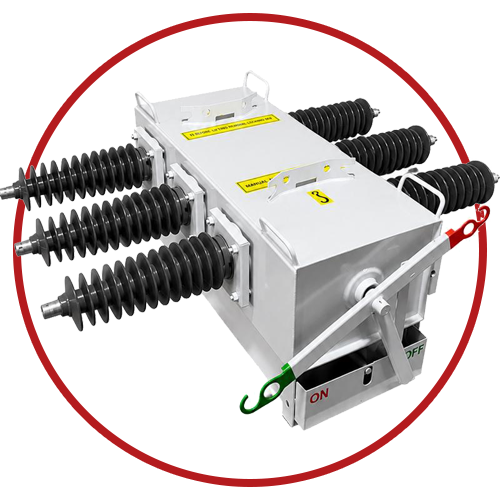

Pole-Mounted SF6 Sectionalizer
Overview
The Pole-Mounted SF6 Sectionalizer by Arian Kelid Pars is an advanced medium-voltage distribution automation device engineered for intelligent overhead power distribution networks. Manufactured under the technology license of EN Technology, South Korea, it combines high-performance switching technology with advanced monitoring, automation, and communication capabilities.
Designed for 12 kV, 24 kV, and 36 kV distribution systems, the sectionalizer improves network reliability by automatically isolating faulted sections while minimizing service interruptions.
Advanced SF6 Switching Technology
The sectionalizer utilizes SF6 gas as the insulation and arc-extinguishing medium, providing outstanding dielectric strength, reliable switching performance, and long-term operational stability.
Its fully sealed construction ensures maintenance-friendly operation while delivering excellent performance in demanding environmental conditions.
Mechanical Construction
The enclosure is manufactured from 3 mm stainless steel, providing exceptional corrosion resistance and mechanical durability.
Designed for outdoor installation, the Pole-Mounted SF6 Sectionalizer delivers reliable performance in:
* High humidity
* Heavy dust
* Industrial pollution
* Coastal environments
* Severe weather conditions

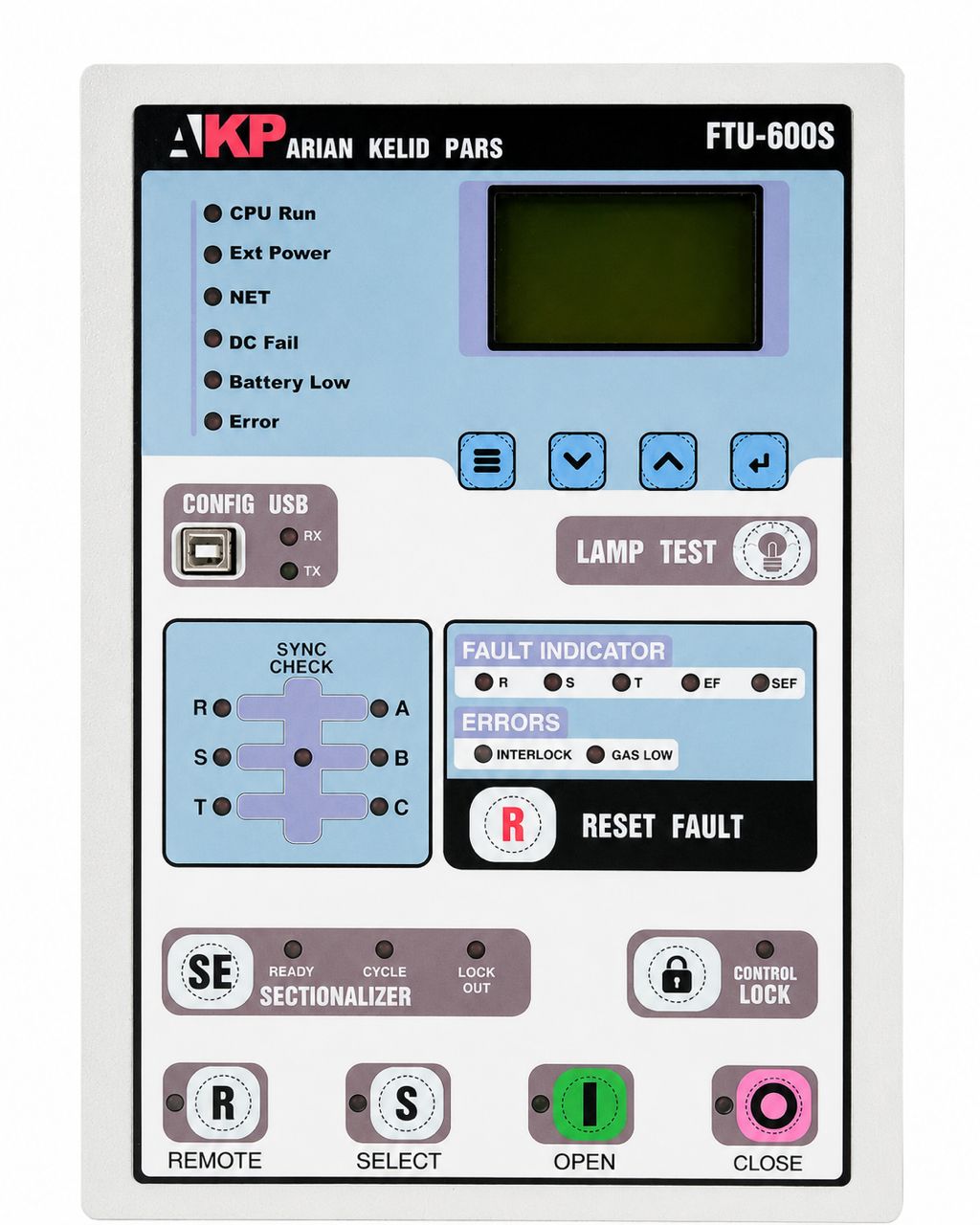

Intelligent Distribution Automation
The Pole-Mounted SF₆ Sectionalizer incorporates advanced monitoring and automation functions, making it an ideal solution for modern distribution networks.
The Pole-Mounted SF6 Sectionalizer supports:
* Current Measurement
* Voltage Measurement
* Fault Detection
* Remote Monitoring
* Remote Control
* SCADA Communication
* Distribution Automation
* Smart Grid Integration
The Arian Kelid sectionalizer can be integrated with Distribution Management Systems (DMS), SCADA, RTUs, and utility control centers to enable real-time monitoring, fault isolation, and improved network reliability.
Key Features of Pole-Mounted SF6 Sectionalizer
* Pole-mounted design for overhead medium-voltage distribution networks
* Manufactured under EN Technology (South Korea) technology license
* SF₆ gas-insulated switching technology
* Available in 12 kV, 24 kV, and 36 kV
* Heavy-duty 3 mm stainless steel enclosure
* High dielectric strength
* Superior arc-extinguishing performance
* Integrated current and voltage measurement
* Automatic fault detection capability
* 24 VDC motor-operated mechanism
* Remote monitoring and remote control
* SCADA communication compatible
* RTU compatible
* Distribution Automation ready
* Smart Grid compatible
* Automatic network sectionalizing
* High reliability under harsh environmental conditions
* Long mechanical and electrical service life
* Low maintenance requirements
Monitoring & Control Functions
* Current Measurement
* Voltage Measurement
* Fault Detection
* Remote Monitoring
* Remote Control
* SCADA Communication
* RTU Integration
* Automatic Sectionalizing
* Distribution of Automation Support
* Smart Grid Integration
| No. | Technical Parameter | Unit | 24kV | 36kV |
| 1 | Rated Voltage | kV | 24 | 36 |
| 2 | Rated Current | A | 630 | 630 |
| 3 | Rated Frequency | Hz | 50 | 50 |
| 4 | Insulation Level - Power Frequency Withstand Voltage | kV | 50 | 75 |
| 5 | Insulation Level - Lightning Impulse Withstand Voltage (Peak) | kV | 125 | 185 |
| 6 | Rated Breaking Current | A | 630 | 630 |
| 7 | Rated Thermal Stability Current (RMS) | kA | 20 | 20 |
| 8 | Rated Thermal Stability Time | s | 1 | 1 |
| 9 | Rated Short-Circuit Closing / Dynamic Stability Current (Peak) | kA | 50 | 50 |
| 10 | Mechanical Life | Operations | > 5000 | > 5000 |
| 11 | Mechanical Class | - | M2 | M2 |
| 12 | Electrical Class | - | E3 | E3 |
| 13 | Installation Type | - | Outdoor Pole Mounted | Outdoor Pole Mounted |
| 14 | Arc Extinguishing Medium | - | SF6 Gas | SF6 Gas |
