Modular Remote Terminal Unit for Distribution Automation
Overview

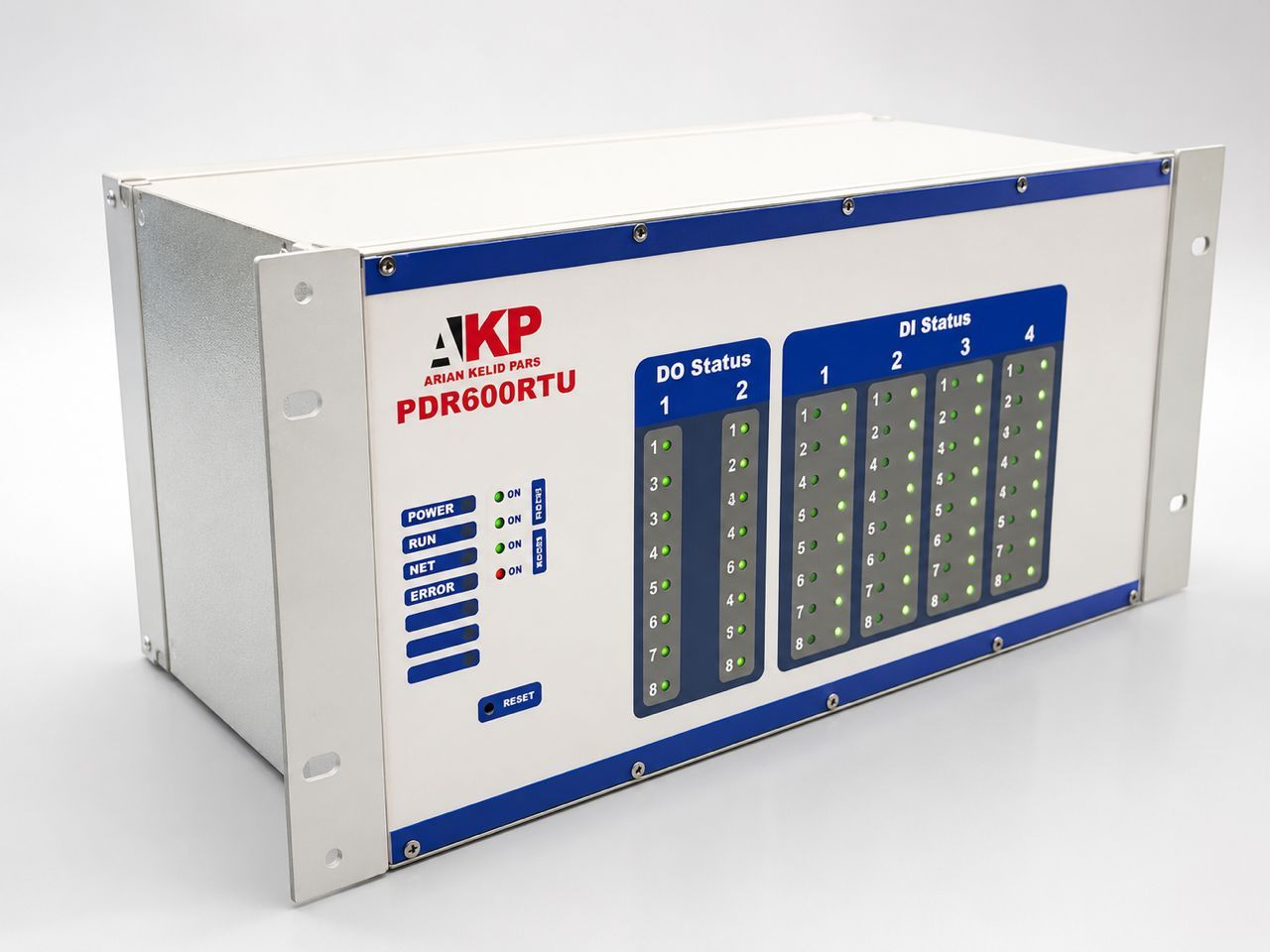

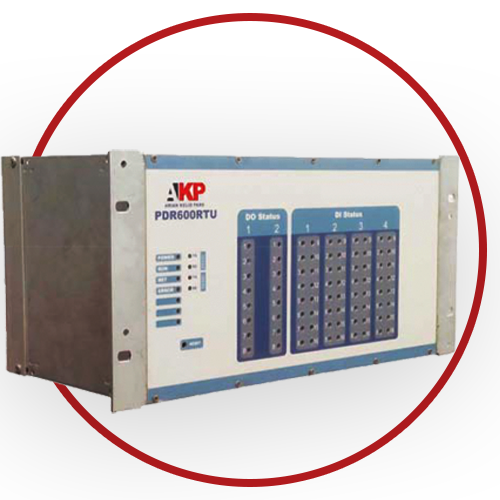

The PDR600 Modular RTU by Arian Kelid Pars is a high-performance Modular Remote Terminal Unit (RTU) designed for monitoring, control, automation, and communication in modern power distribution and industrial automation systems.
Built on a scalable modular architecture, the PDR600 enables flexible expansion through a wide range of I/O modules, allowing utilities and industrial operators to configure the system according to project-specific requirements.
Designed for demanding utility and industrial environments, the PDR600 Modular RTU provides reliable data acquisition, real-time control, and seamless integration with SCADA, Distribution Automation (DA), and Smart Grid applications.
Flexible Modular Architecture

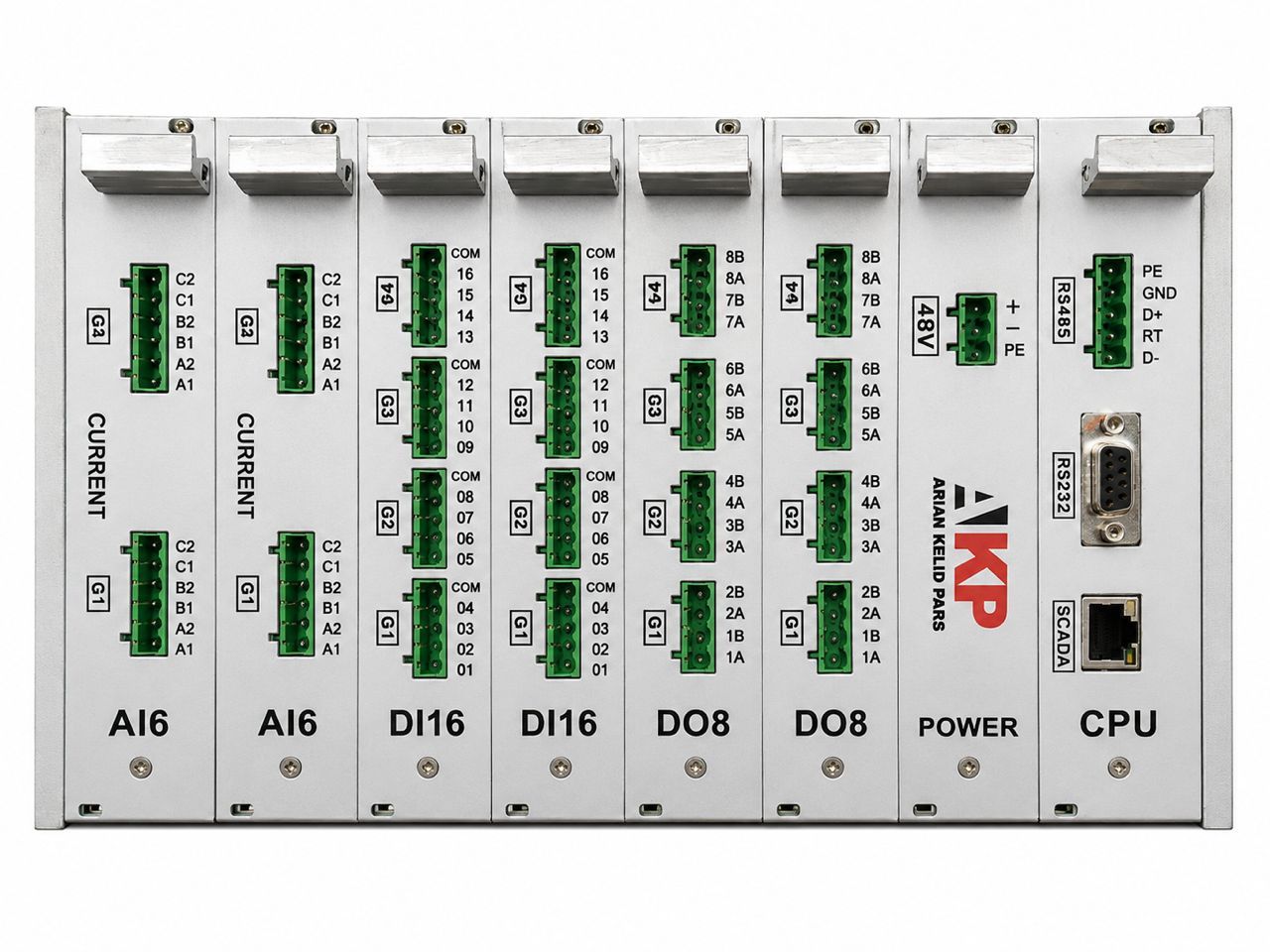

The PDR600 features a modular hardware platform that supports future expansion by adding various input and output modules, including:
* Digital Inputs (DI)
* Digital Outputs (DO)
* Analog Inputs (AI)
Its modular design allows system capacity to be increased without replacing the main controller, making it an ideal solution for both new installations and future network expansion.
Industrial Communication & Automation
The PDR600 Modular RTU is designed for reliable operation in utility substations, transmission and distribution networks, industrial facilities, and critical infrastructure.
The controller communicates seamlessly with SCADA, dispatch centers, and automation systems through internationally recognized communication standards.
PDR600 Modular RTU Supported protocols:
* IEC 60870-5-101
* IEC 60870-5-104
* DNP3
* Modbus
* LAN (Ethernet)
* CAN Bus Communication
Reliable Performance
Designed for continuous operation in mission-critical applications, the PDR600 provides high system availability, excellent operational reliability, and stable performance under harsh industrial environments.
The modular architecture simplifies maintenance while reducing system downtime and lifecycle costs.
Key Features of PDR600 Modular RTU
* Modular and expandable architecture
* Scalable DI / DO / AI modules
* Designed for large industrial automation projects
* SCADA compatible
* Dispatch Center integration
* IEC 60870-5-101 support
* IEC 60870-5-104 support
* DNP3 protocol support
* Modbus communication
* Ethernet (LAN) connectivity
* CAN Bus communication
* Remote monitoring and control
* High reliability and system availability
* Suitable for transmission and distribution networks
* Stable operation in harsh industrial environments
* Easy installation, configuration, and maintenance
The PDR600 Modular RTU is ideal for:
* High-voltage substations
* Medium-voltage substations
* Power transmission networks
* Power distribution networks
* Distribution Automation (DA)
* Oil & Gas facilities
* Petrochemical plants
* Water & Wastewater utilities
* Utility dispatch centers
* SCADA systems
* Smart Grid infrastructure
* Industrial monitoring and control
| No | Parameter | Specification | |
| 1 | Model | PDR600 | |
| 2 | Device Type | Modular Remote Terminal Unit (RTU) | |
| 3 | Architecture | Fully Modular Industrial RTU | |
| 4 | Power Supply | +24 to 60 VDC | |
| 5 | RTC Backup Battery | 3V Coin Cell Type 2032 | |
| 6 | CPU Power Consumption | < 3W | |
| 7 | DI Card Power Consumption | < 0.4W | |
| 8 | AI Card Power Consumption | < 0.4W | |
| 9 | DO Card Power Consumption | < 0.6W | |
| 10 | Digital Input Capacity | 16 Channels per DI Card (24-48VDC) | |
| 11 | Digital Output Capacity | 8 Channels per DO Card (Relay 16A / 250V) | |
| 12 | Analog Input Capacity | 6 Channels per AI Card | |
| 13 | Analog Resolution | 16-bit | |
| 14 | Analog Current Rating | 5A | |
| 15 | Communication Ports | 1 × RS232 1 × RS485 1 × 10/100 Ethernet |
|
| 16 | USB Ports | Supported for Service & Configuration | |
| 17 | SCADA Connectivity | Supported | |
| 18 | Protocols | DNP3 Master/Slave, IEC870-5-101/104 Master/Slave, IEC870-5-103 Master, Siemens S7 Connect Client, Modbus RTU Master/Slave, Modbus TCP Client/Server, GSP Client, OPC UA Server (DA, AE, HD) |
|
| 19 | Database & Logging | SQLite Local Archiving + MS SQL Direct Client | |
| 20 | Processor | 32-bit ARM Cortex A8 @ 1GHz | |
| 21 | Flash Memory | 4GB EMMC | |
| 22 | RAM | 512MB DDR3 | |
| 23 | Expandable Storage | Micro SD Slot up to 32GB | |
| 24 | Programming Platform | pbsSoftLogic IEC61131 | |
| 25 | Programming Method | Function Block (FB) | |
| 26 | Custom Logic | User-defined FB by Lua or C++ | |
| 27 | Operating System | Embedded Linux | |
| 28 | CPU Dimensions (W×H×D) | 320 × 166 × 174 mm | |
| 29 | I/O Card Dimensions (W×H×D) | 30 × 166 × 174 mm | |
| 30 | Construction Material | Industrial Aluminum | |
| 31 | Mounting Type | Flush Mount / Wall Mount | |
| 32 | Operating Temperature | -40°C to +85°C | |
| 33 | Storage Temperature | -50°C to +105°C | |
| 34 | Humidity |
0 to 95% Non-condensing |
|
Industrial Standards
| Topic | Standard | |
| Analog Input | IEC 60870-3/4 , IEC 60870-4 | |
| Power Supply | IEC 60870-2-1 , IEC 60870-4 | |
| Digital Input | IEC 60870-3 | |
| EMC | IEC 61000-4-2 / 3 / 4 / 5 / 6 / 8 / 10 / 11 / 29 / 18 / 17 , CISPR22 | |
| Climatic Conditions |
IEC 60068-2-1 , IEC 60068-2-2 , IEC 60068-2-30 |
|
